HP ADS schematic (click on image to see the LINC2 schematic and simulation).

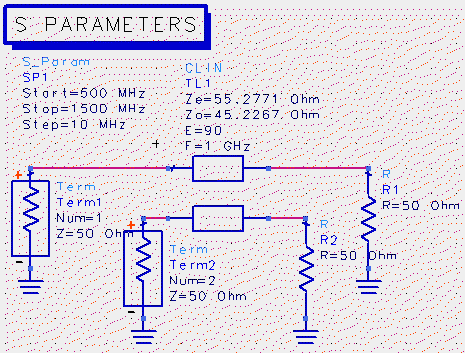

Above is HP (Agilent) ADS's electrical model and simulation results.

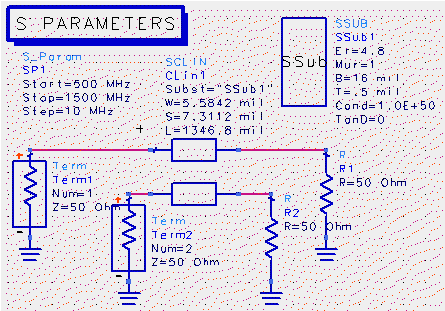

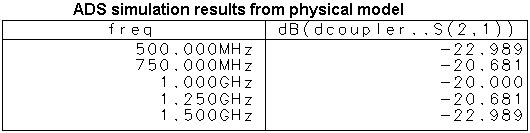

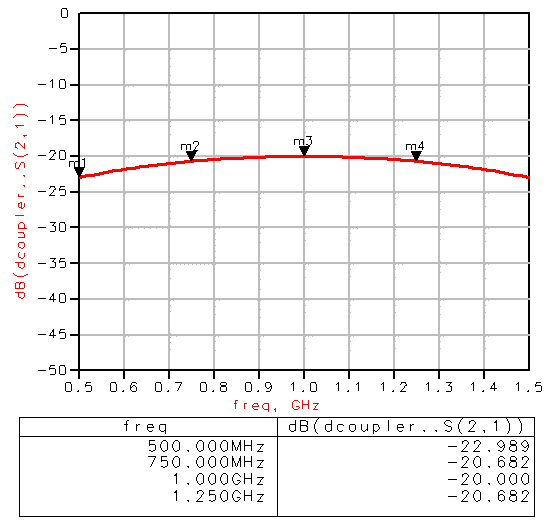

Below is HP (Agilent) ADS's physical model and simulation results.



Both types of simulations produce virtually identical results and agree with LINC2.

All of the physical data for "SCLIN" in ADS was synthesized by the LINC2 transmission line tool.

HP ADS is a high end CAE program costing thousands of dollars more than LINC2.

Click COMPARE LINC2 to see the LINC2 simulation results.
