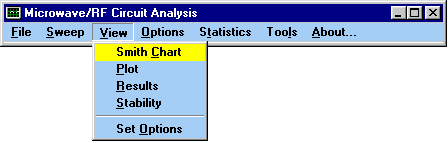

Step 8:  Select View Smith Chart to see the input and output match S11 and S22 in terms of port impedances.

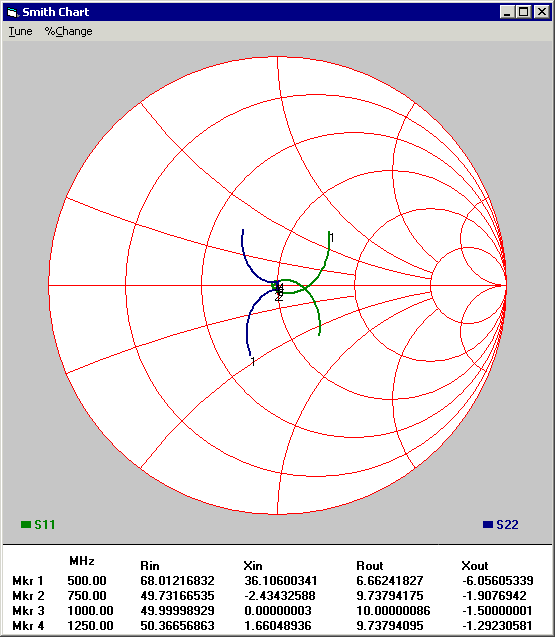

Notice from the marker data that the input impedance remains close to 50 ohms and the output impedance is close to 10 - J 1.5 over most of the 500 MHz band between markers 2 and 4.
